In the drilling industry, achieving a high Rate of Penetration (ROP) while maintaining tool longevity is the ultimate goal. When it comes to drilling through soft to medium-hard rock formations—such as shale, limestone, and sandstone—the equipment you select makes all the difference.

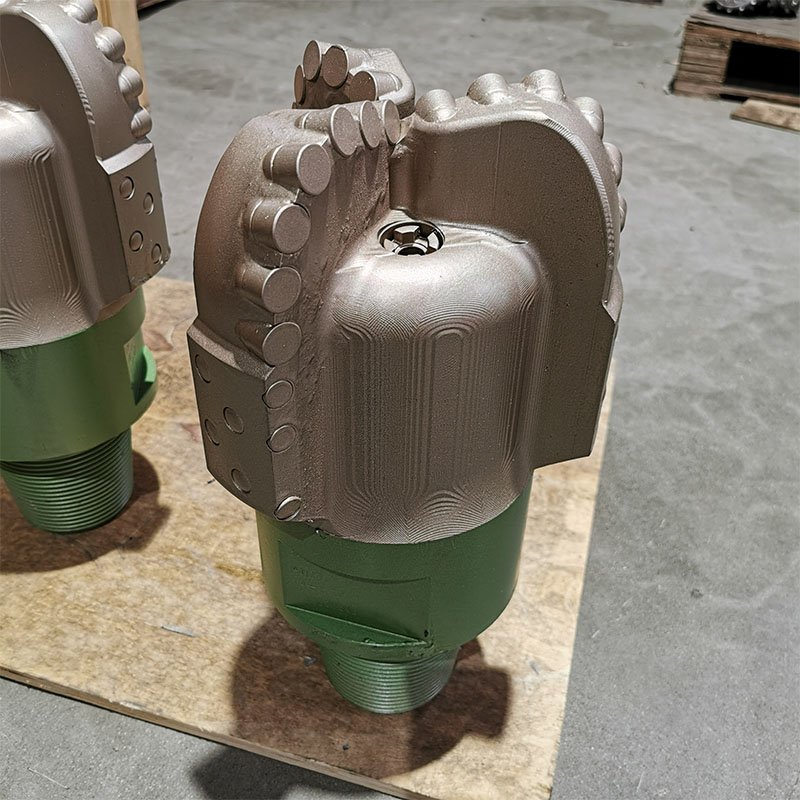

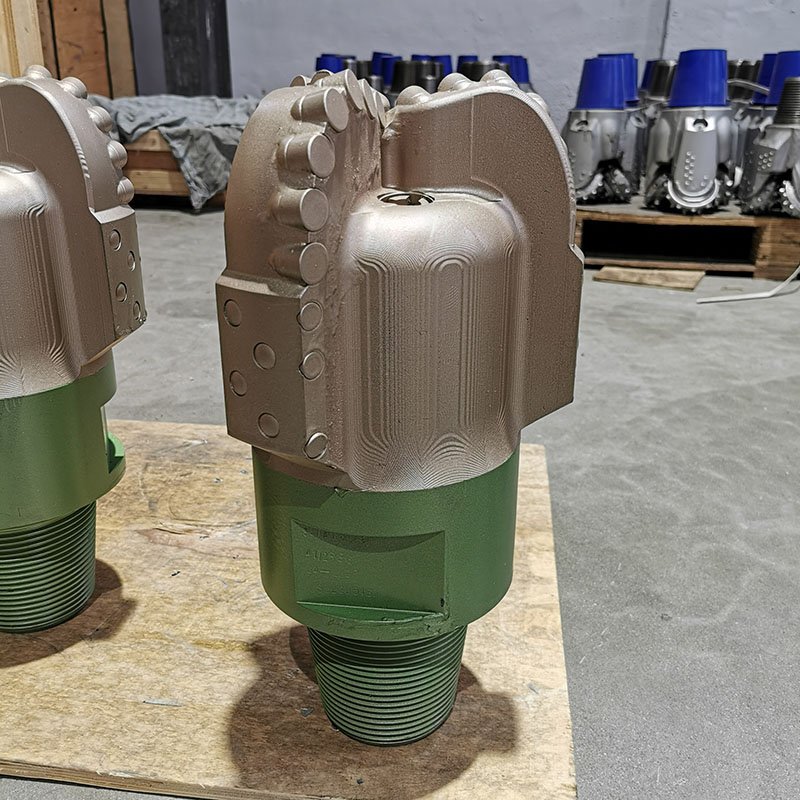

Among the various configurations available, the 8 ¾” (222mm) Steel Body PDC Drill Bit with 3 blades and 19mm cutters has proven to be one of the most efficient and cost-effective solutions on the market.
Here is a technical breakdown of why this specific combination delivers exceptional performance in water well, geothermal, and mining applications.
1. The Advantage of a Steel Body Design
PDC (Polycrystalline Diamond Compact) bits generally come in two body types: Matrix and Steel. For soft to medium formations, Steel Body bits offer distinct structural advantages:
- Larger Junk Slots: Steel is significantly stronger than matrix material, allowing manufacturers to machine thinner blades and wider, deeper junk slots. This ensures rapid evacuation of cuttings, preventing the bit from “balling up” in sticky clay or shale layers.
- Higher Hydraulic Efficiency: The spacious design allows for optimized nozzle placement and smoother fluid hydraulics, keeping the cutters cool and the bottom of the hole clean.
- Cost-Effectiveness & Repairability: Steel body bits can be rebuilt and re-tipped with new PDC cutters multiple times, greatly reducing the total cost per foot over the lifecycle of the tool.
2. Why 3 Blades (Wings)?
The number of blades on a PDC bit dictates its aggressiveness and stability. A 3-blade configuration is specifically engineered for maximum aggressiveness in less competent rock:
- Maximum ROP: Fewer blades mean less surface area comes into contact with the rock formation at once. This maximizes the weight-on-bit (WOB) applied to each individual cutter, allowing the bit to aggressively plow through soft strata at unmatched speeds.
- Enhanced Chip Clearance: In water well and piling projects, fast drilling generates a massive volume of debris. Three blades provide the absolute maximum physical clearance needed to flush out thick mud and large stone chips seamlessly.
3. The Power of 19mm Premium Cutters
The cutter size is the engine of the PDC bit. While smaller cutters (such as 13mm or 16mm) are suited for harder, highly abrasive rocks, 19mm cutters are the gold standard for soft to medium formations:
- Deeper Depth of Cut (DOC): Large 19mm diamond compacts shear off massive chunks of rock per rotation rather than just grinding them down. This scraping and shearing mechanism is incredibly destructive to shale and limestone.
- Excellent Impact Resistance: Modern 19mm premium cutters are engineered with advanced interface geometry, providing high thermal stability and impact toughness to handle interbedded formations without chipping.
Applications & Formation Compatibility
This 8 ¾” (222mm) 3-blade steel body PDC bit excels in:
- Water Well Drilling: Fast-tracking residential and industrial water well setups.
- Geothermal Piling: Drilling large-diameter loops quickly through clay and soft rock layers.
- Target Formations: Mudstone, siltstone, shale, soft limestone, gypsum, and loose sandstone.
Conclusion: Partner with Haoqi Rock Bits
Selecting the right bit configuration prevents premature tool failure and slashes your rig operating hours. At Haoqi Rock Bits, we specialize in engineering high-performance, custom-tailored 222mm Steel Body PDC drill bits designed to tackle your exact drilling environments.
Ready to boost your ROP and lower your drilling costs? for technical specifications, custom manufacturing options, and direct factory pricing.
