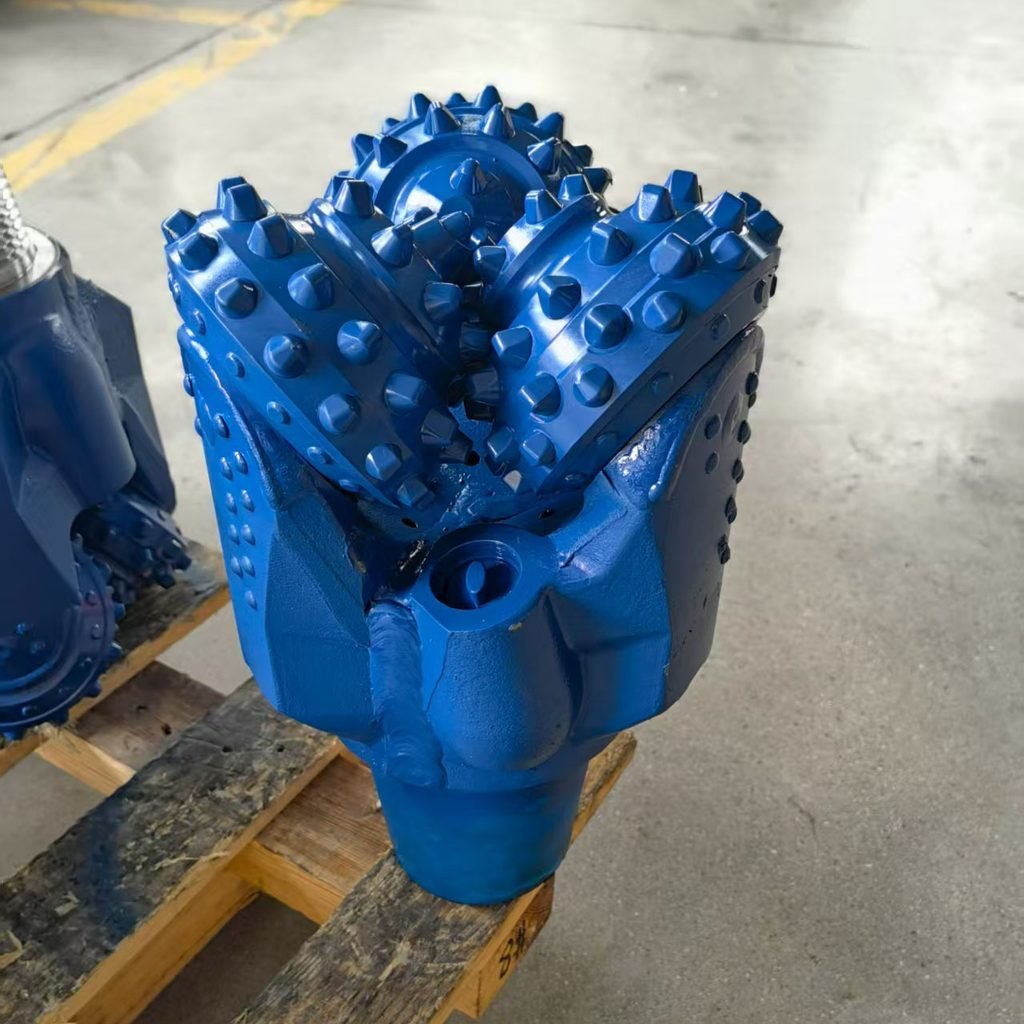

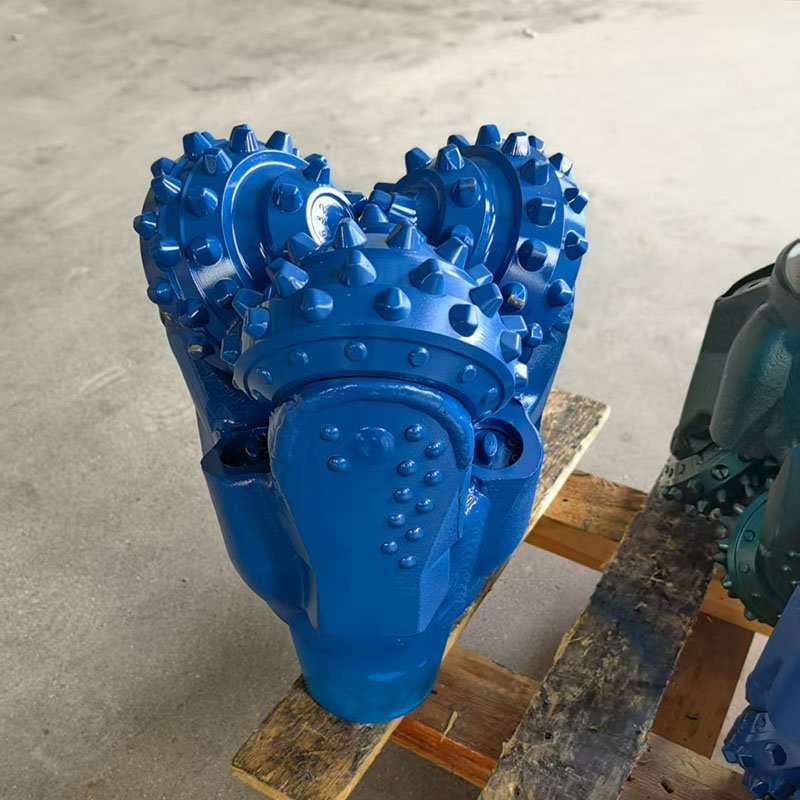

Looking for an efficient 8 1/2 IADC 537 tricone bit for water well projects? Check out our heavy-duty 8.5 inch TCI roller cone bit designed for medium hard rock formations. Contact our API certified 8 1/2 tricone drill bit factory for factory-direct prices!
In water well drilling projects, choosing the right drilling tool determines your rate of penetration (ROP) and total project cost. If you are drilling through limestone, sandstone, or hard shale with abrasive interlayers, the 8 1/2 IADC 537 tricone bit for water well applications is your ideal choice.
As a specialized API certified 8 1/2 tricone drill bit factory, we engineer these roller cone bits to deliver unmatched durability and speed where standard bits fail.
1. Optimized Cutting Structure for Medium Hard Rock
The 8.5 inch TCI roller cone bit medium hard formation design features premium tungsten carbide inserts (TCI).
- Chisel-Shaped Inserts: The inner rows are equipped with robust chisel inserts to maximize chipping and crushing actions in tough strata.
- Gauge Protection: Strategic placement of compact inserts on the gauge surface protects the cone from premature wear, ensuring the hole maintains a perfect 8-1/2″ diameter throughout the operation.
2. High-Performance Bearing and Hydraulic Systems
To withstand long hours of continuous drilling in water well and geothermal exploration, our 8 1/2 water well rock roller bit utilizes an advanced bearing infrastructure:
- Sealed Journal Bearing: A high-quality rubber O-ring seal prevents drilling mud and abrasive particles from entering the bearing cavity.
- Optimized Hydraulics: Features three precision nozzles that deliver balanced fluid distribution, ensuring quick cutting removal from the bottom hole and keeping the cones cool.
- Standard Connection: Comes with a standard 4 1/2″ API Regular Pin connection, making it fully compatible with common top-drive and rotary water well drilling rigs.
3. Specifications of Our 8-1/2″ IADC 537 Tricone Rock Bit
| Parameter | Specification Details |
| Bit Size | 8 1/2 inches (215.9 mm) |
| IADC Code | 537 (TCI Cutting Structure) |
| Connection Type | 4 1/2″ API Reg Pin |
| Bearing Type | Rubber Sealed Journal Bearing |
| Applicable Formations | Medium hard, abrasive rocks (hard shale, dolomite, limestone, firm sands) |
| Recommended Operating Speed | 40 – 110 RPM |
| Weight on Bit (WOB) | 0.5 – 1.05 KN/mm |
Get Factory-Direct Pricing Today
When sourcing for your next project, bypassing middle trading companies can significantly lower your cost per foot. As a rising API certified 8 1/2 tricone drill bit factory, we provide reliable rock drilling tools that match premium industry standards at a fraction of the cost.
Are you looking for the latest 8 1/2 water well rock roller bit price or need custom nozzle configurations? Contact our engineering team today for a quick quotation and technical support!
